Product introduction

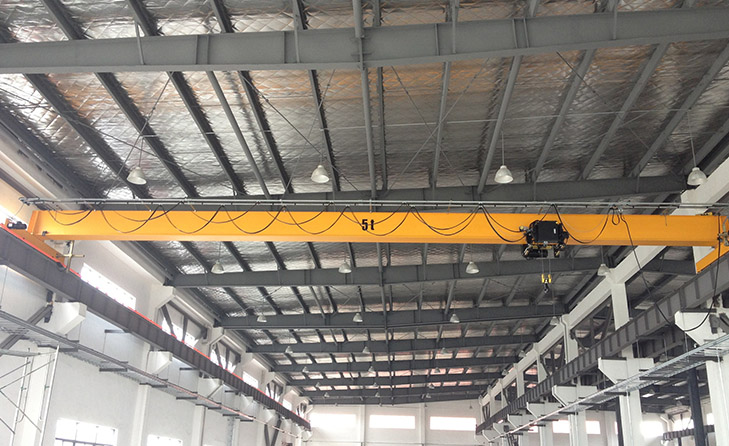

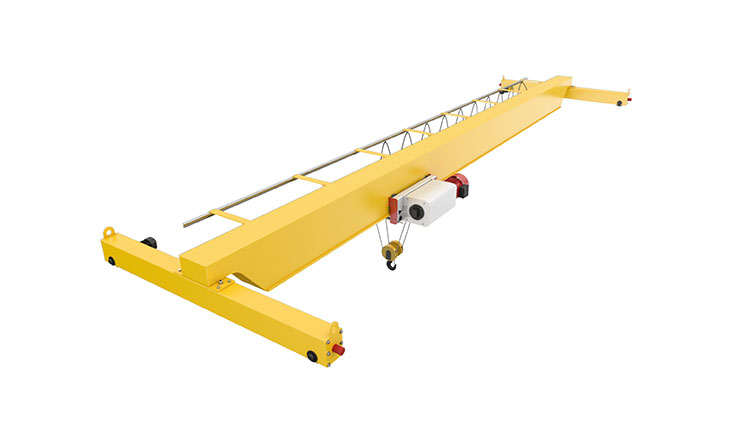

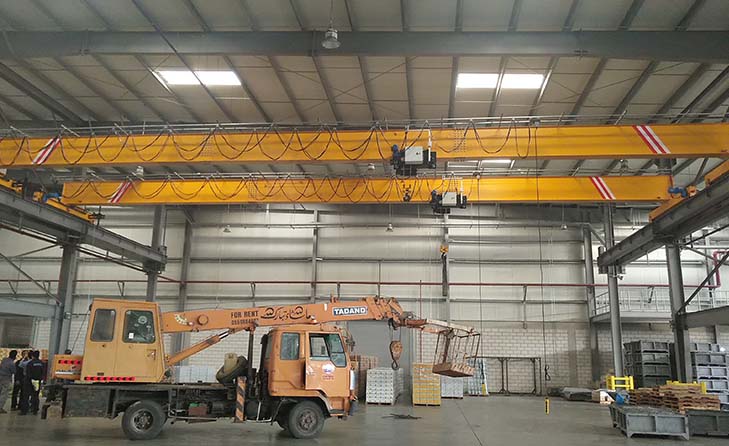

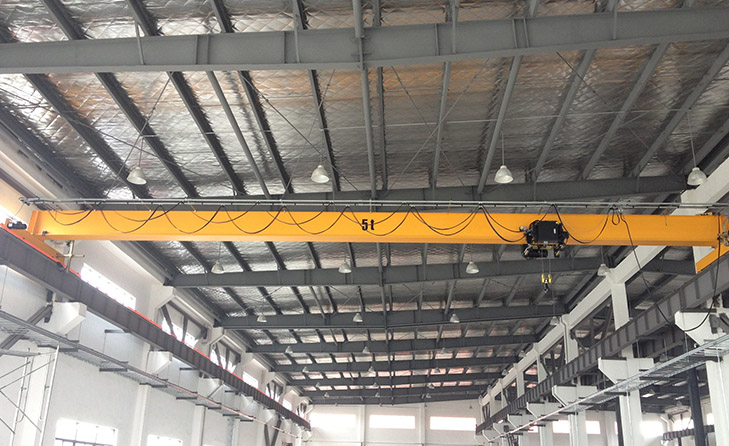

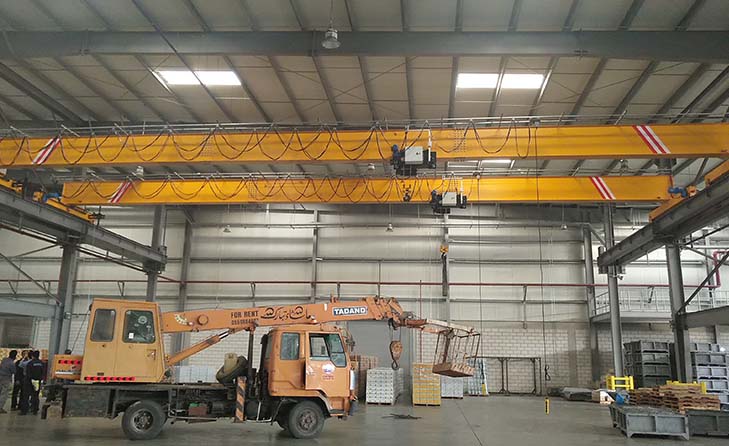

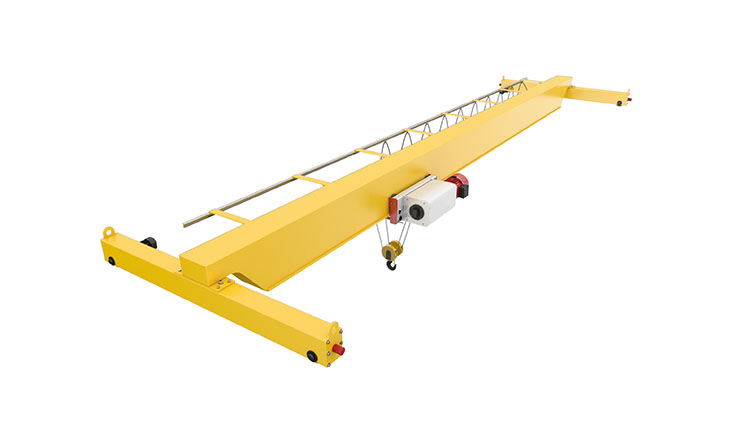

HD model European Single Girder Overhead Crane is equipped with high performance ABM or SEW brand engines, Schneider brand inverters and electrical components, variable speeds, box girder design, low headroom monorail hoist. Low noise, free maintenance, light weight, good-looking, most popular among new construction plant or workshops;

This type crane have features of European optimization design, light dead weight, small wheel load, and short size. Good driving capacity, double lifting speed, frequency control of trolley and crane, smooth and stable traveling and a variety of patterns meet customers’ needs.

Product Advantages

• Single main girder, welding box structure, camber meeting national standard.
• Steel plate material Q235 or Q345B ( similar with foreign steel plate Fe3 or Fe52).
• Main welds joint adopts union melt welding, nondestructive inspection. After welding, main girder is through shot blasting treatment, gets Sa2.5 class, and eliminate welding stress.
• Reasonable layout, simple maintenance and insulation class IP55 for electric control box Flat cable, galvanized track and cable pulley for trolley traveling power supply, smooth traveling.
• The trolley and crane adopt three-trinity driving mechanism, frequency stepless speed regulating, hard-tooth surface, disc brake.
• Crane driving IP55, F class insulation, contact continuity reaches 40% ED. Epoxy zin-rich paint, a long service life, beautiful outlook and lustre.

Safety protection

Lifting limit switch: Prevent the hook out of control when it has been lifted to the top position

Traveling limit switch: Stop the crane traveling smoothly when travel to the rail ends

Overload limiter: Prevent for the overload

Wire rope guide: Align the wire rope neatly on the reel to prevent the wire rope from messing and overlapping

We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices

Technical Data
