Product introduction

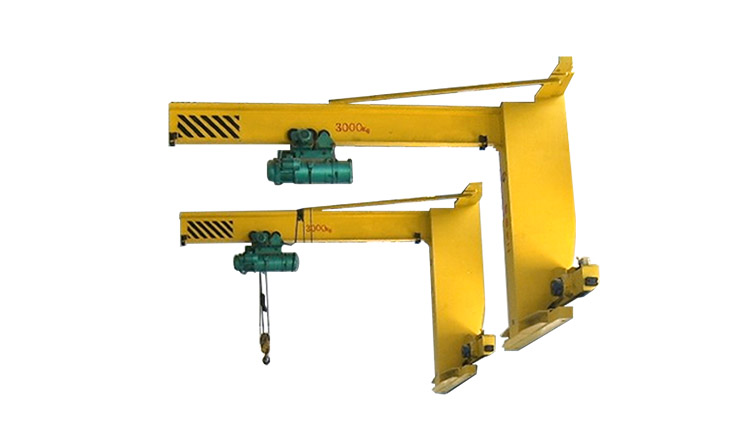

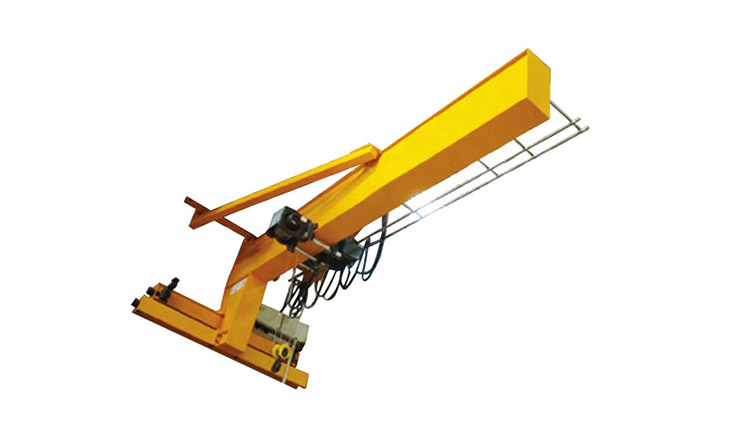

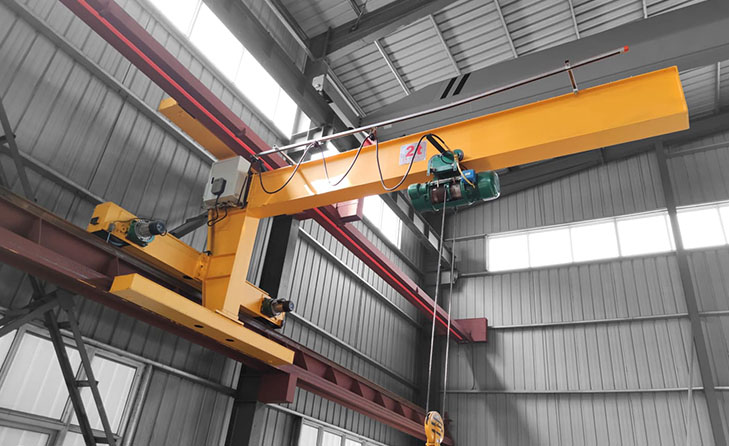

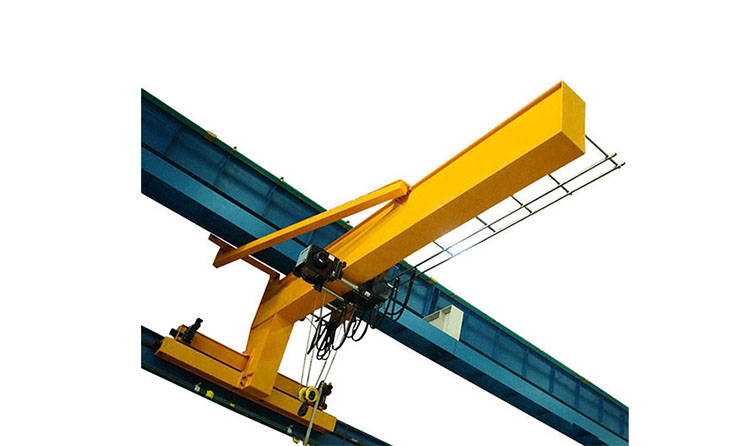

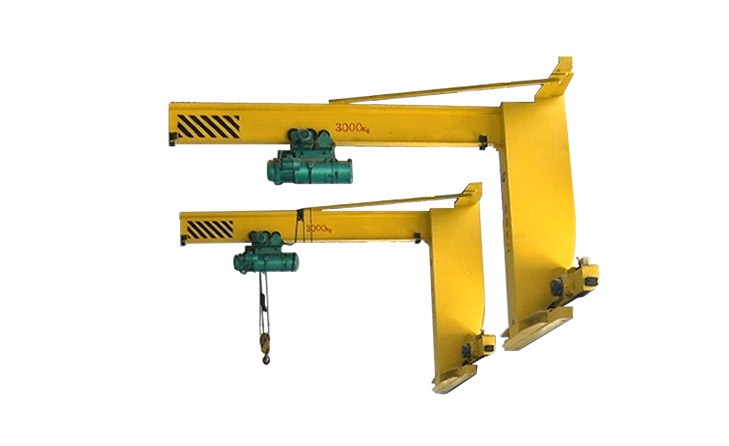

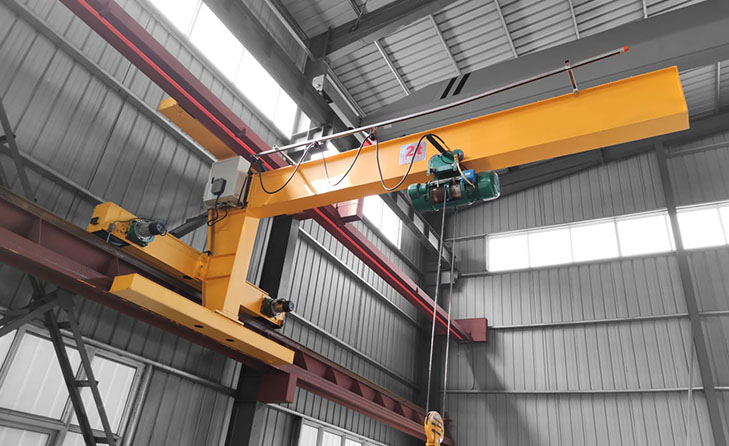

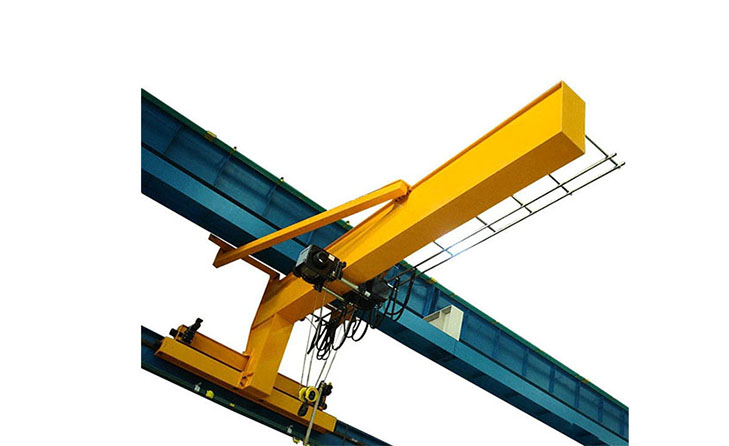

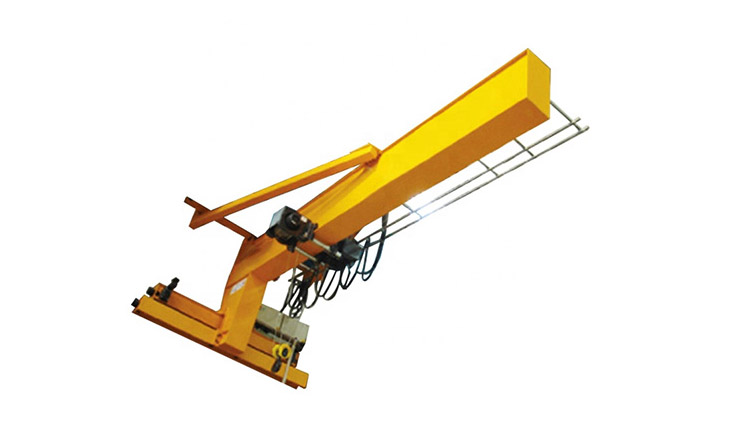

Wall travelling jib crane is a cost effective crane which travels along the rail mounted on the wall or other supported structure on elevated orbit of a multilayer assembly shop, making the full advantages of the working space. Wall travelling jib crane can provide long lateral movement of materials and at the same time can lift the objects in the vertical direction by the lifting equipment. The lifting capacity of wall travelling jib crane is 0.5 to 10 tons and working class is A3, and the main parameters are presented in the following tables:

Product Advantages

• Light structure, few demand to architecture, confirming to state standards
• Compact structure with novel, reasonable and simple design
• Light weight, moving flexible
• Convenient in operation, and turn to flexible.
• Cost-effective price and low maintenance
• Wall travelling jib crane offers long lateral transporting of materials without taking up floor space or interfering performance of large overhead cranes.
• Wall travelling jib cranes can be lined up to handle materials in work stations and the length of crane runways is without limitation.
• The most-effective material handling equipment for handling smaller lifts.
• Handle or remote control operation on ground is provided which is easy, accurate, quick and efficient.
• Customized material handling solution is available which can fully meet your requirements and application conditions.
• Double block button is installed and the protection class is up to IP44.
• The services life of wall travelling jib crane can high up to 500 thousand times.

Safety protection

Lifting limit switch: Prevent the hook out of control when it has been lifted to the top position

Traveling limit switch: Stop the crane traveling smoothly when travel to the rail ends

Overload limiter: Prevent for the overload

Wire rope guide: Align the wire rope neatly on the reel to prevent the wire rope from messing and overlapping

We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices

Technical Data
