Product introduction

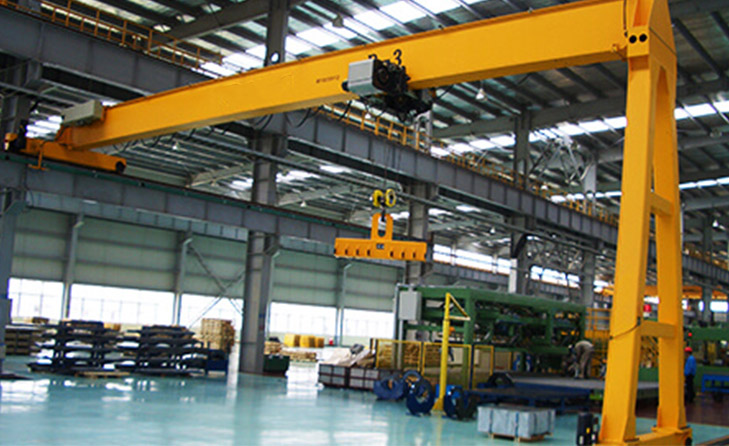

Semi Gantry Crane is widely used in the open yard, one side traveling on the top running rail fixed besides the warehouse and the other side traveling on the rail fixed rail. According to different lifting capacity range, it divided into single girder semi gantry crane and double girder semi gantry crane.In the lower part of the main beam, there is a leg and insulation on the lower beam. The design and manufacture of crane meet the State Administration of Quality Supervision, inspection and quarantine of the quality of writing“2007”document No. 375, lifting other molten metal items and hot solid metal location can also refer to the selection.

Product Advantages

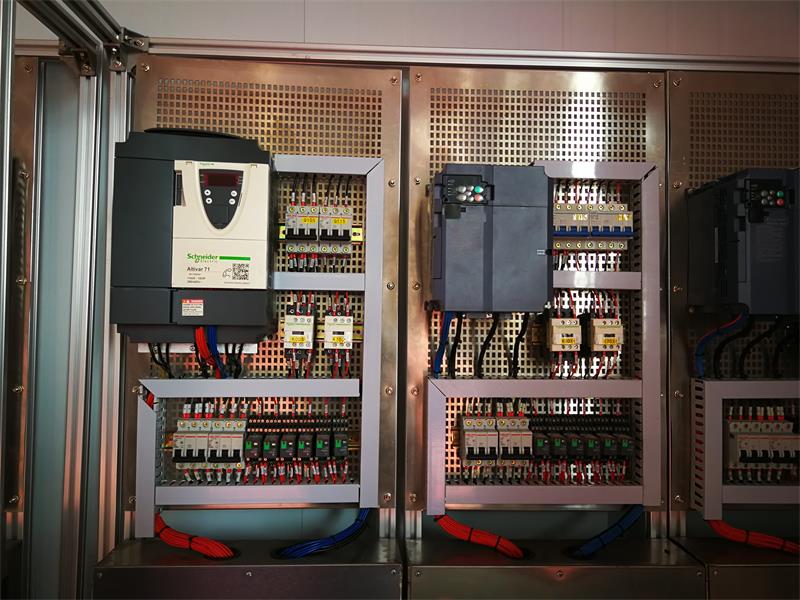

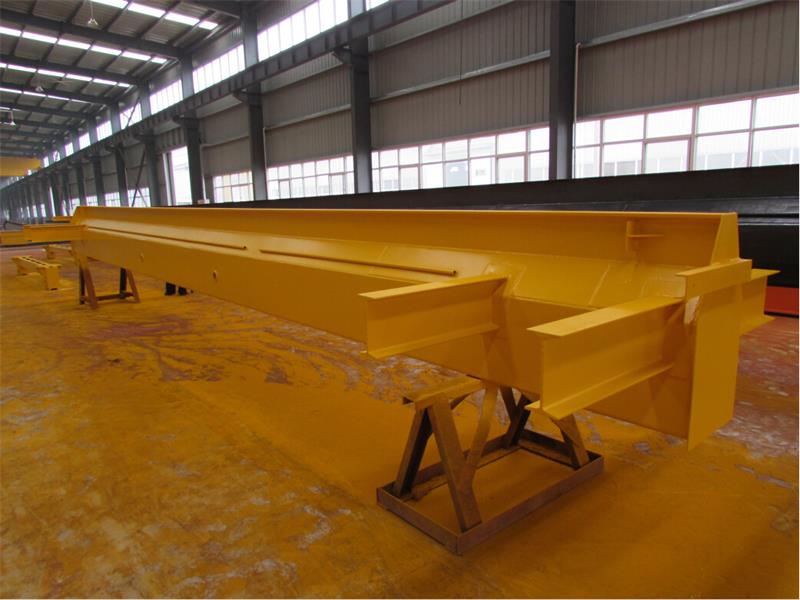

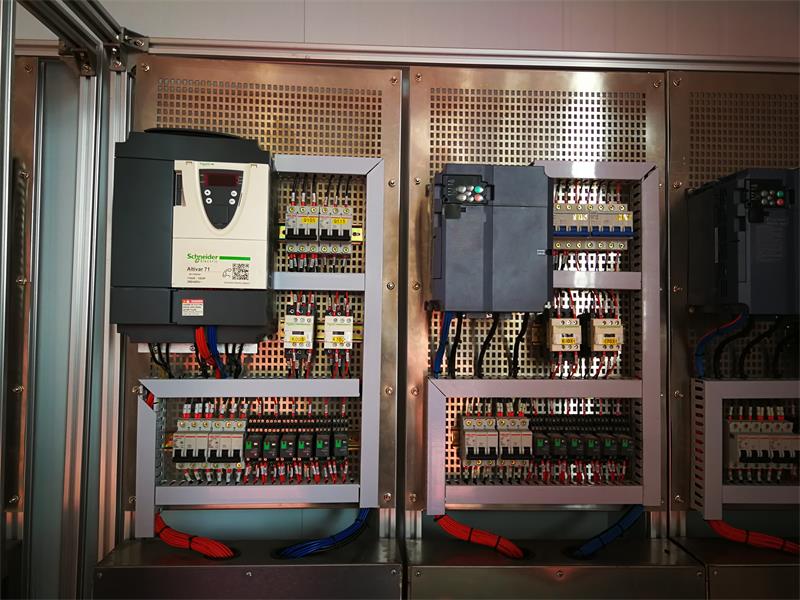

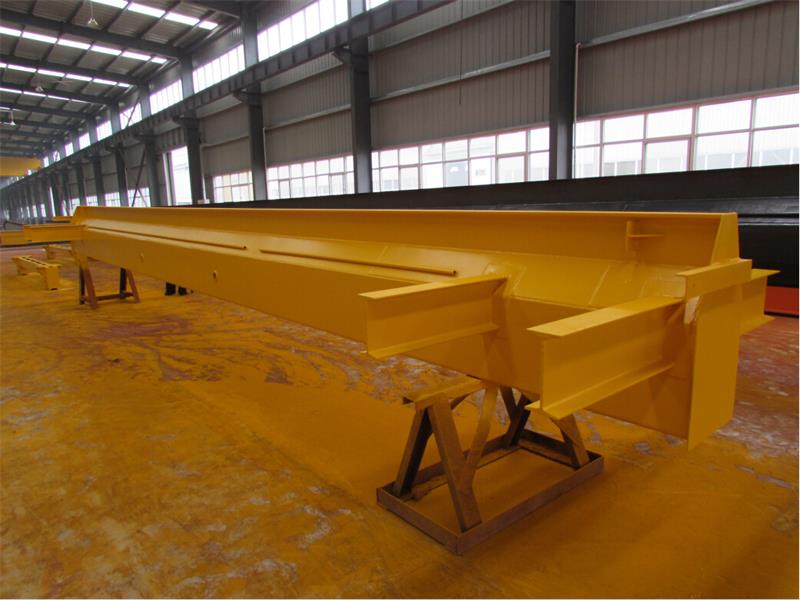

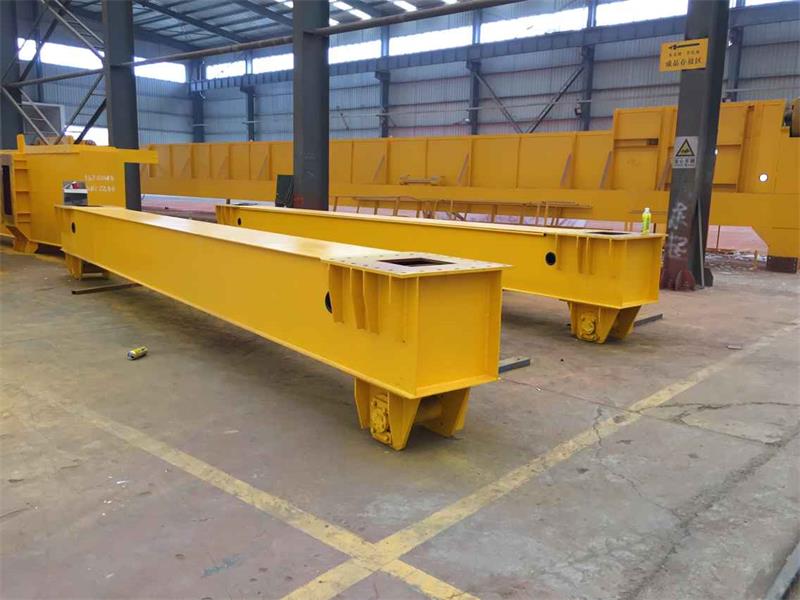

• European Semi Gantry Crane is equipped with high performance engines, ABM brand, Schneider brand electrical components, variable speeds, box girder design, light pressure electric lifting trolley. Low noise, free maintenance, light weight, good-looking, most popular used in the open yard;

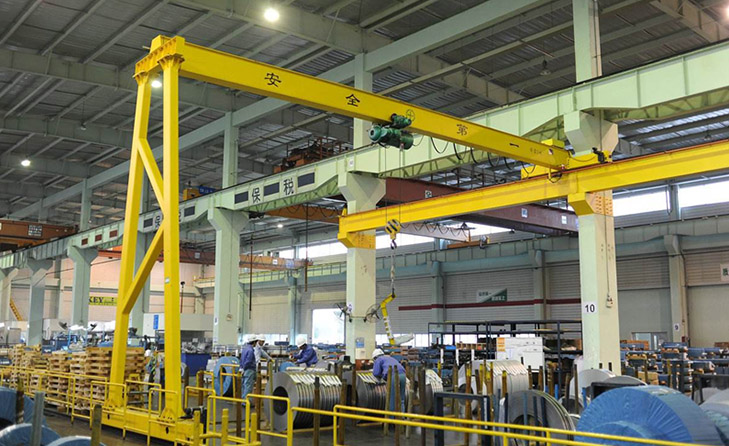

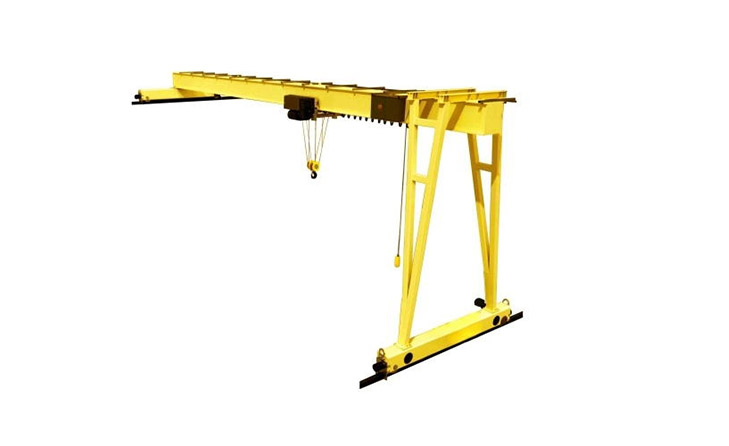

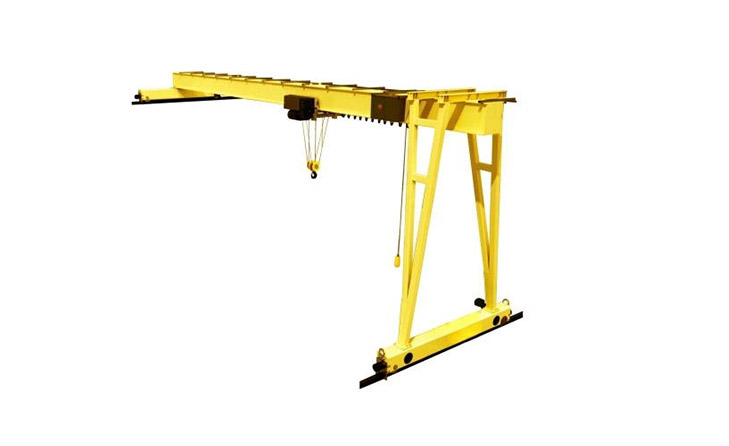

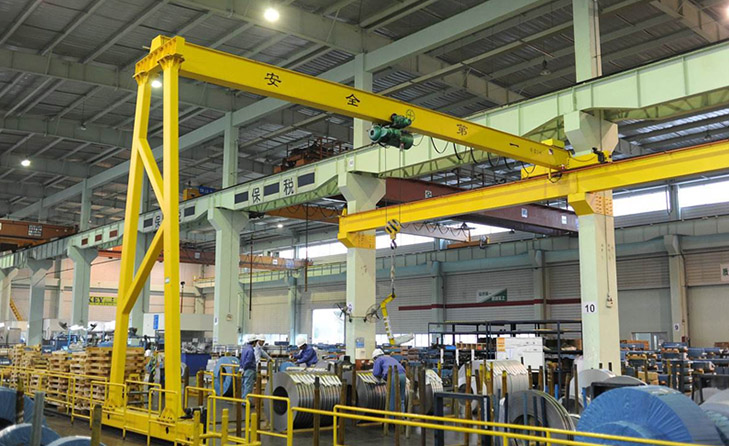

• The single girder semi gantry crane is a general purpose light crane used in workshop or outdoors. The leg height of this single girder semi-gantry crane can be different according to the engineering needs on the construction field. The single girder semi gantry crane has the features of simple structure, easy installation, light weight, good wind resistance.

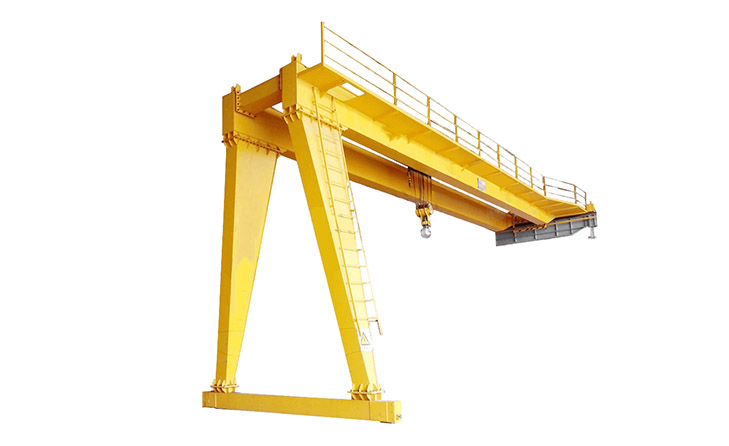

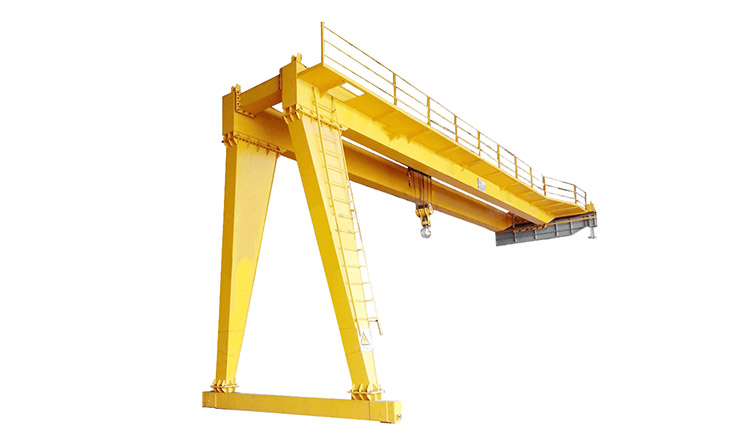

• The double girder semi gantry crane is combining the advantages of the full gantry crane and overhead crane. It is widely applied to do loading and unloading work in indoor or outdoor.

Safety protection:

Lifting limit switch: Prevent the hook out of control when it has been lifted to the top position

Traveling limit switch: Stop the crane traveling smoothly when travel to the rail ends

Overload limiter: Prevent for the overload

Wire rope guide: Align the wire rope neatly on the reel to prevent the wire rope from messing and overlapping

We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices

Technical Data
