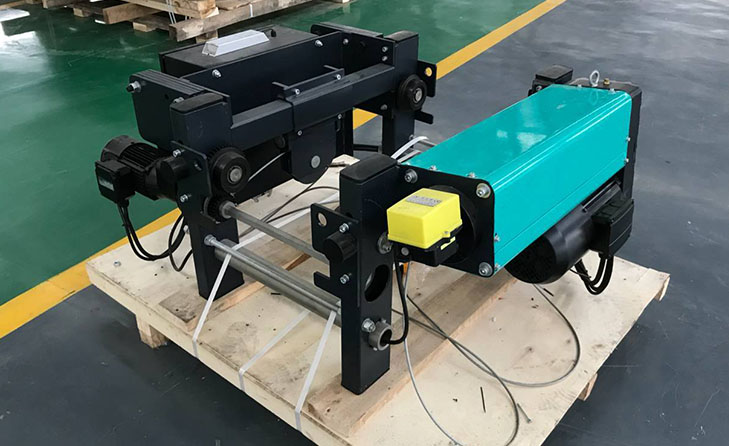

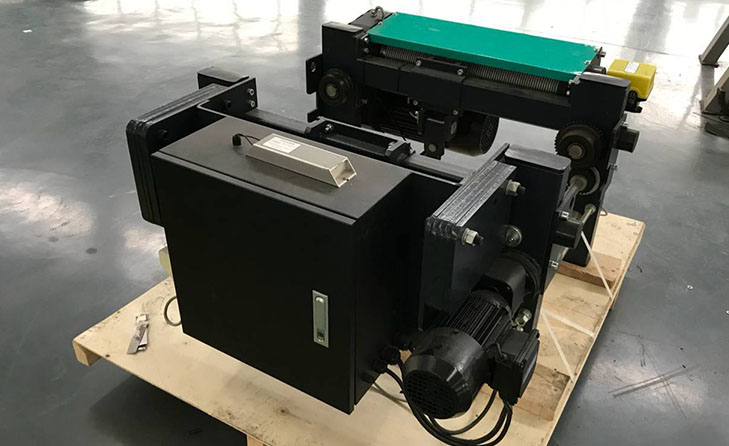

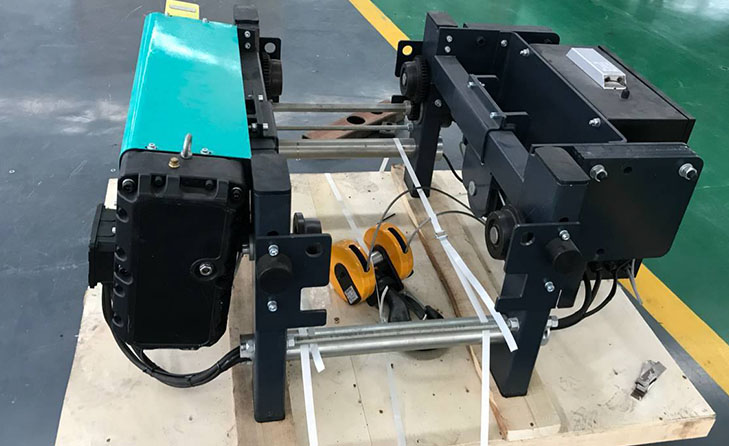

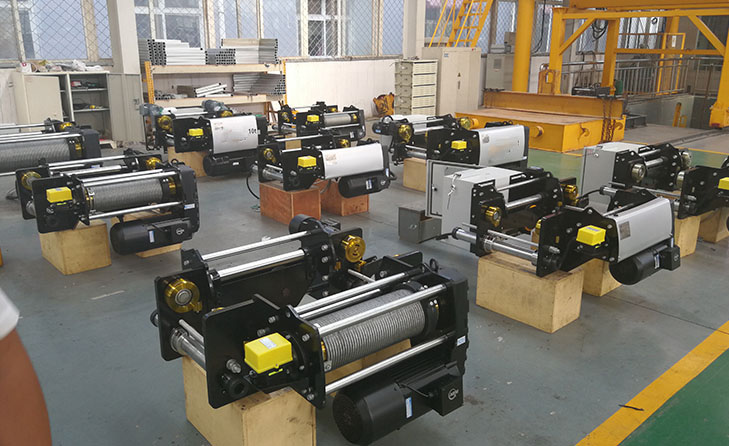

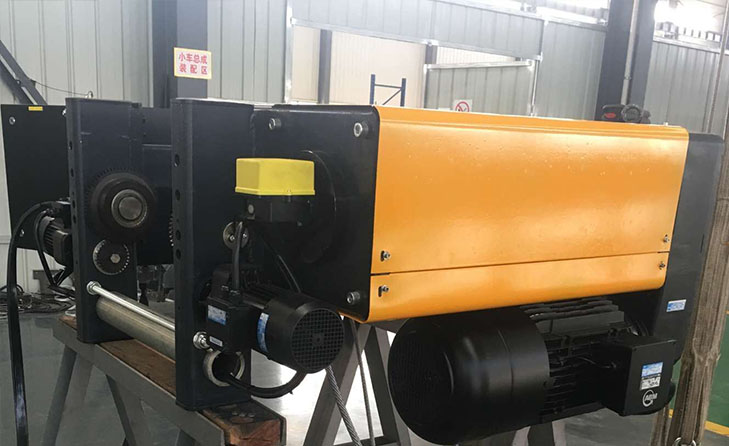

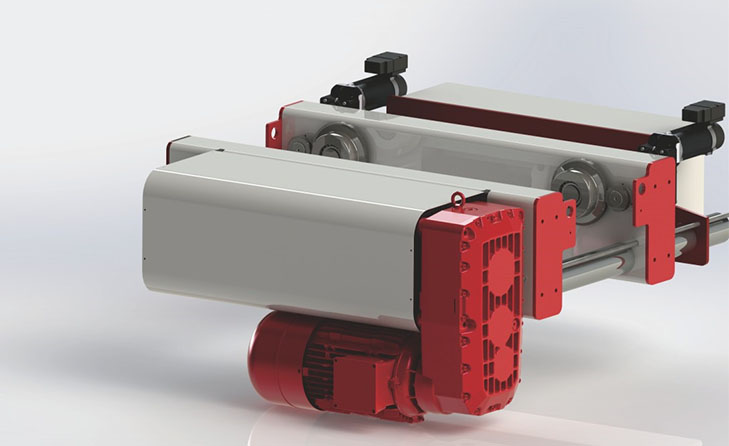

European Style Electric Hoist

Model: ND
Product: European Electric Hoist
Design standard: FEM,DIN
Lifting capacity: 1t-20t
Lifting height: 6-30m
Working class: FEM 2M
Ambient temperature:-20-40℃

Product introduction Product Usage Product Advantages Safety protection

Product introduction

Main mechanical parts: trolley wheels, wire ropes, hook, pulley, drum.

Electrical parts: lifting engines, cross traveling engines, electric control box, limit switches, overload limiter, pendant control.

Product Usage

European Style Monorail Hoist is widely used in machining workshop, product storage and dispatch warehouse, plastic injection molds changing, finished steel product industries;European wire rope electric hoist is a newly developed material handling equipment with advanced design technology according to the FEM standards and other regulations.The new serial of wire rope electric hoist is environment-friendly, energy saving and cost-effective which ranks top among similar products. The lifting capacity of the European wire rope electric hoist is 1 to 20 tons and the working class is M5 and M6. Customized European wire rope electric hoist are available. And the main parameters are presented for your reference.

Product Advantages

ND model European Monorail Hoist is equipped with high performance engines, ABM brand, Schneider brand electrical components, variable speedsand VFD control.
Low headroom,low noise, light weight, good-looking, most popular among new construction plant or workshops.
Maintenance Free for European Style Electric Hoist, Free replacement for 10 years.
Equipped with overload limiter, and real-time load value is displayed in the screen to prompt the operator to prevent overloading.
Perform a self-test before starting, including the power supply voltage level, default phase, button zero status and validity of each safety device.

Safety protection

Lifting limit switch: Prevent the hook out of control when it has been lifted to the top position

Overload limiter: Prevent for the overload

Wire rope guide: Align the wire rope neatly on the reel to prevent the wire rope from messing and overlapping

We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices

Technical Data

Capacity	t	3	5	10	16	20
Lifting height	m	6~30	6~30	6~30	6~30	6~30
Lifting speed	m/min	0.8/5	0.8/5	0.8/5	0.6/4	0.6/4
Traveling speed	m/min	2~20	2~20	2~20	2~20	2~20
Work duty		A5	A5	A5	A5	A5
Main girder type		250-350	300-450	300-450	300-500	300-500
